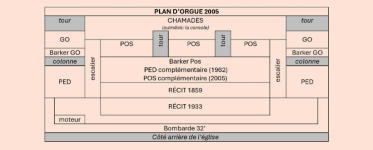

installing an additional windchest for the Positif at the place of the
Soubasse (Pedal) in order to place 6 new stops ((Tierce 1’3/5, Piccolo 1’ from
the Positif, Quinte 5-1/3, Tierce 3-1/5, Septième 2-2/7 et Unda Maris 8 flûté
(from the city stocks and the builders Dragassies, Gonzalez et Jacquot)
which could not hinder the sound of the Swell, while moving the Pedal
Soubasse pipes away from the front of the Swell shades.
•
lengthening of the Flûte octaviante (which was cut in 1962)
Récit
•
addition of a Cor de Nuit 8'
•
replacement of the Clairon 2’ by a Fifre harmonique 1’
•
addition of a Clarinette
Pedal
•
Reorganisation, resulting in the follwing stoplist : flûte 4, flûte 2, soubasse
16, basse 8, quinte 10 2/3.
•
Ajout une Contrebombarde 32 ( of wood in the first octave)
Other works
•
addition of two tremblants
•
transfer of the console to the first floor
•
installation of a new mobile console on the floor of the church.
To read: Notes on the Organ in the Basilica of Sainte-Clotilde
THE GREAT ORGAN 5/5
the organ of Franck - the organ of Tournemire - the organ of Langlais - the organ of Taddei
BUFFET
THE GREAT ORGAN
5/5
the organ of Franck - the organ of
Tournemire - the organ of Langlais -
the organ of Taddei
THE ORGAN OF JACQUES TADDEI
The third enlargment of the organ
The most recent renovation (1999-2005) was conducted by Bernard Dargassies, under supervision of Jacques Taddei (the titulare at that time, who also raised the - private - funds) and Jean-Louis Coignet, Organ Advisor to the City of Paris. According to Dargassies many of the harmonic-length pipes had been damaged and disfigured. The expression shutters of the Swell were rendered useless by a wall of pipes of the new Soubasse of the Pedal. The wind pressures had been "changed" over the years due to a variety of factors, due to insufficient maintenance and new regulator springs installed in 1962 that lost their tension over the years. The 1962 console barely missed being consumed by fire caused by hazardous electrical connections made over the years.
The works of Dargassies included:
•
Removal of the plywood deflecting panels
above the buffet.
•
Restauration of the pipes with as starting
point a return to their original character
and reharmonisation of the neo-baroque
stops to obtain a homogeneous symphonic
instrument.
•
Reconstruction of the wind supply
(including the installation of new, large,
double-fold bellows identical to the original
and added in symmetry to guarantee a
good wind supply) and original wind
pressures.
•
Replacement of the noisy pneumatic
motors and mechanical components .
•
Replacement of the electromecanic
traction of Beuchet by an electronic solid-
state traction with an electronic Setzer
•
Restauration of the console
•
Changes in the composition:
Grand-Orgue, Récit, Pedal
•

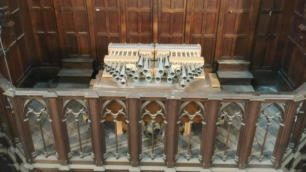

Addition of a Trompette 8 en chamade (on
the second floor).
Grand-Orgue
Putting back the 16’ resultant of the Plein Jeu
Positive
•

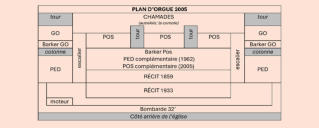

installing an additional windchest for the
Positif at the place of the Soubasse (Pedal)
in order to place 6 new stops ((Tierce 1’3/5,
Piccolo 1’ from the Positif, Quinte 5-1/3,
Tierce 3-1/5, Septième 2-2/7 et Unda Maris 8
flûté (from the city stocks and the builders
Dragassies, Gonzalez et Jacquot) which
could not hinder the sound of the Swell,
while moving the Pedal Soubasse pipes
away from the front of the Swell shades.
•
lengthening of the Flûte octaviante (which
was cut in 1962)
Récit
•
addition of a Cor de Nuit 8'
•
replacement of the Clairon 2’ by a Fifre
harmonique 1’
•
addition of a Clarinette
Pedal
•
Reorganisation, resulting in the follwing
stoplist : flûte 4, flûte 2, soubasse 16, basse
8, quinte 10 2/3.
•
Ajout une Contrebombarde 32 ( of wood in
the first octave)
Other works
•
addition of two tremblants
•

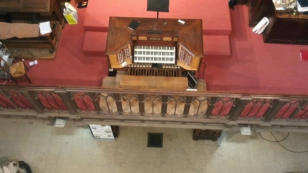

transfer of the console to the first floor
•
installation of a new mobile console on the
floor of the church.
To read: Notes on the Organ in the Basilica of
Sainte-Clotilde

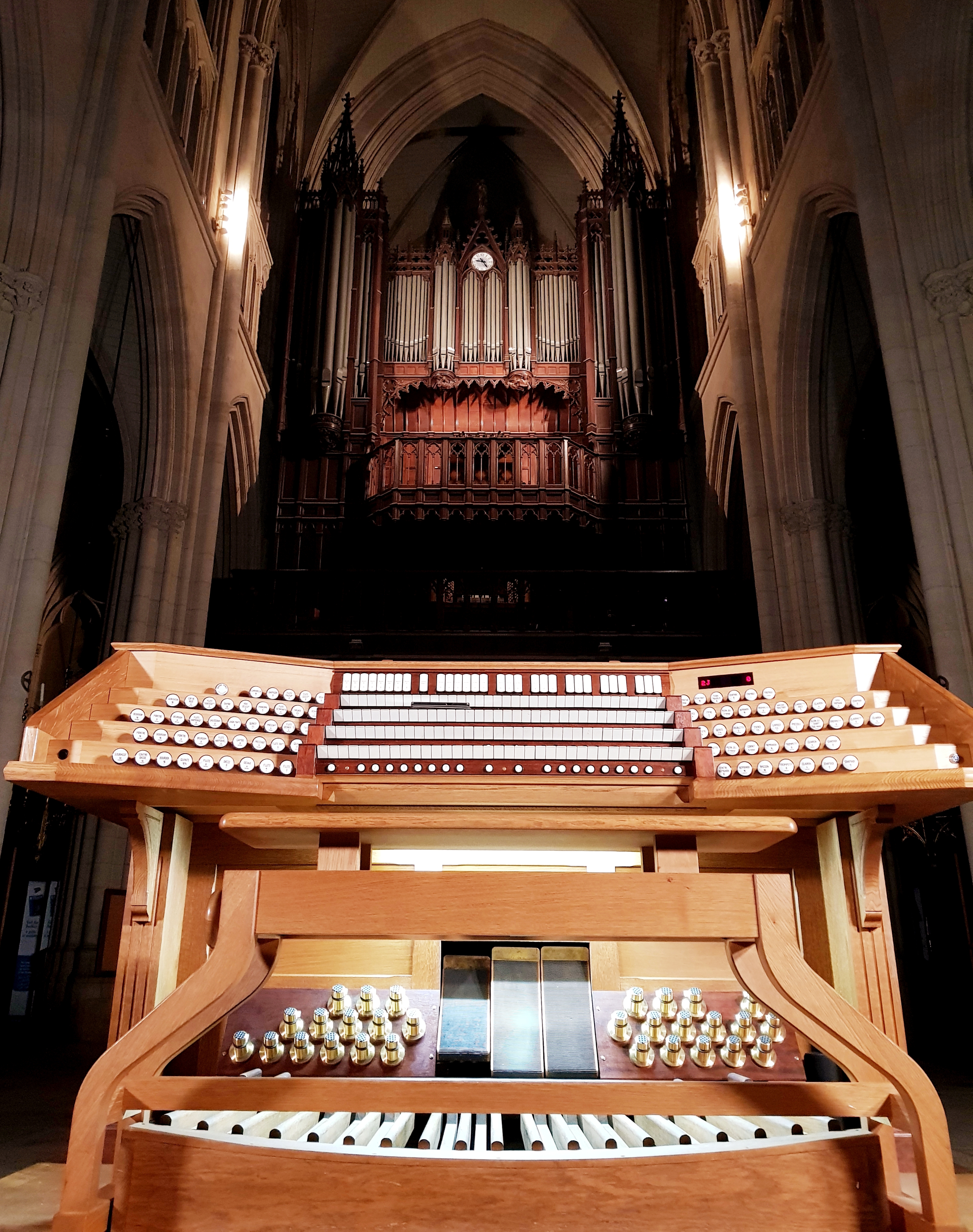

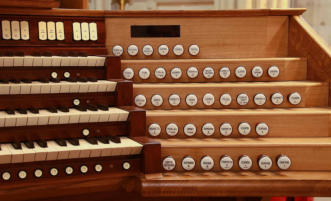

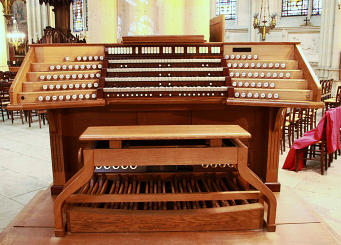

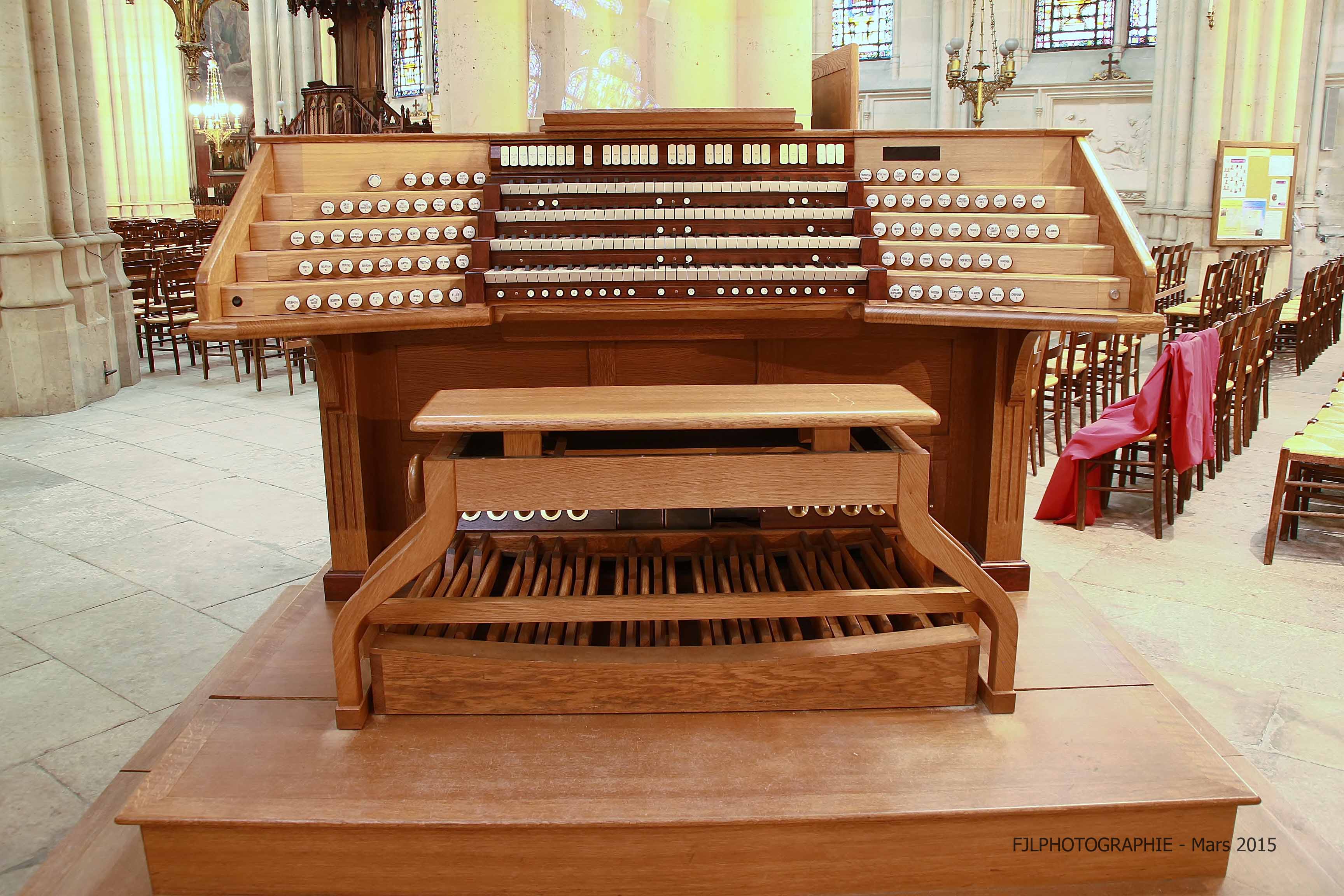

THE MOBILE CONSOLE
The mobile console permits the p;ublic let the public see the organist playing and to permit the performance of great symphonic works with the orchestra positioned around the console. This console has a fourth keyboard (for the chamades, orginally meant for a series of additional stops which were never realized). Stops marked are original stops of Cavaillé-Coll.
